Access Console Log Data Via the System Monitoring Framework (SMF)

Console log data is collected by SMF and can be queried through the Kibana UI or Elasticsearch. Each line of the console logs are an individual record in the SMF database.

Prerequisites

This procedure requires the Kibana service to be up and running on a non-compute node (NCN).

System domain name

The SYSTEM_DOMAIN_NAME value found in some of the URLs on this page is expected to be the system’s fully qualified domain name (FQDN).

(ncn-mw#) The FQDN can be found by running the following command on any Kubernetes NCN.

kubectl get secret site-init -n loftsman -o jsonpath='{.data.customizations\.yaml}' | base64 -d | yq r - spec.network.dns.external

Example output:

system.hpc.amslabs.hpecorp.net

Be sure to modify the example URLs on this page by replacing SYSTEM_DOMAIN_NAME with the actual value found using the above command.

Procedure

  1. Navigate to the following URL in a web browser: https://sma-kibana.cmn.SYSTEM_DOMAIN_NAME/app/kibana

    If this appears Do this
    the Keycloak login page Supply valid credentials, then wait to be redirected to the Kibana dashboard before continuing to the next step.
    the error Kibana did not load properly. Check the server output for more information. Clear browser cookies for https://sma-kibana.cmn.SYSTEM_DOMAIN_NAME
    The Kibana dashboard (see example below) Proceed to next step

    When the Kibana dashboard loads, the web UI displays the Discover page by default. Note that even without entering a search pattern, an index pattern shows entries ordered in time.

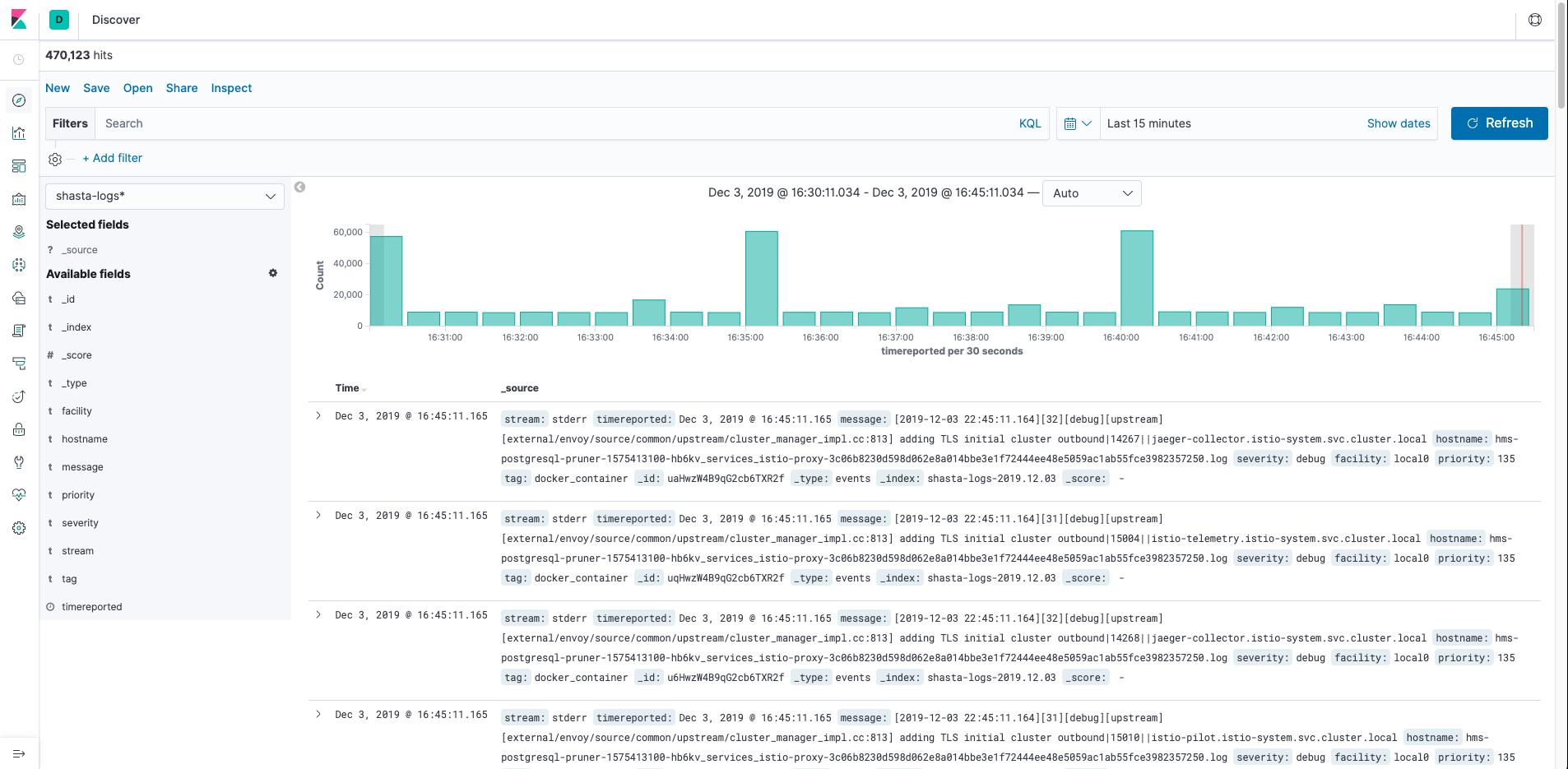

    Kibana Discover Dashboard

  2. Select the Shasta index for the type of logs desired from the drop-down list to search that data source.

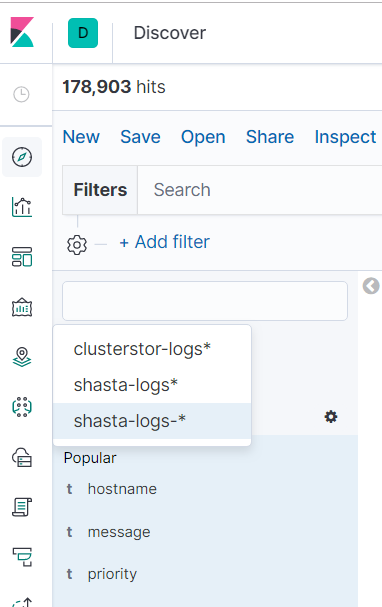

    Kibana ClusterStor Logs

  3. Identify the component name (xname) for individual consoles to search for specific logs.

    Each line of the log data is prepended with console.hostname: XNAME where XNAME is the name of the node for the console log. This information can be used to identify each individual console.

    For example, the following is the console log for x3000c0s19b4n0:

    console.hostname: x3000c0s19b4n0 <ConMan> Console [x3000c0s19b4n0] joined by <root@localhost> on pts/0 at 10-09 15:11.
console.hostname: x3000c0s19b4n0 2020-10-09 15:11:39 Keepalived_vrrp[38]: bogus VRRP packet received on bond0.nmn0 !!!

  4. Enter Search terms for the specific console component name (xname) using the console.hostname: XNAME string.

  5. Click the time range drop-down menu to select the time period for which logs are displayed.

    Using a time range for these searches is important to limit the scope and number of records returned, as well as limiting the time required to perform the search.

    The default time range is 15 minutes.

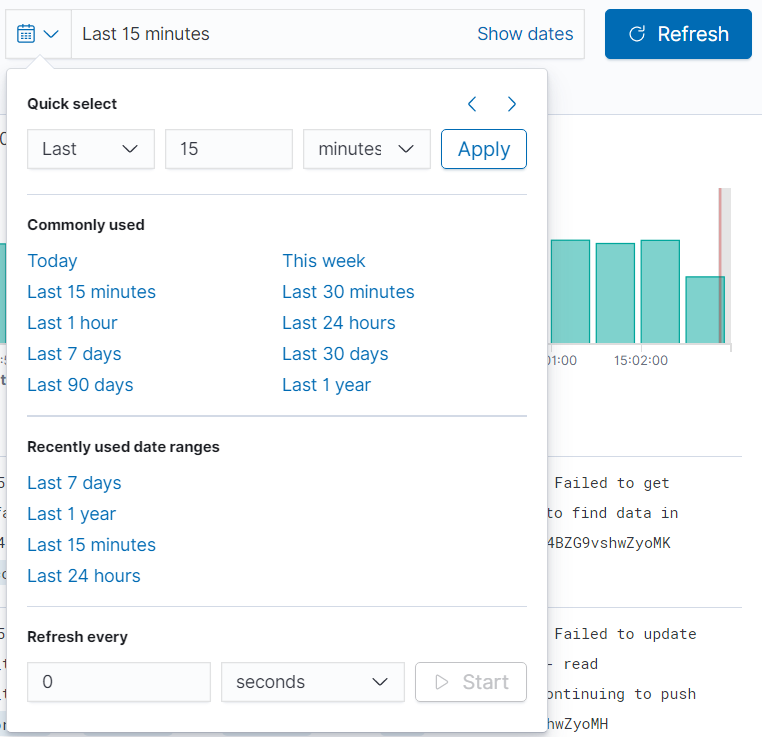

    Kibana Results Time Period
