iSCSI SBPS (Scalable Boot Content Projection Service)

Introduction

iSCSI based boot content projection solution named Scalable Boot Content Projection Service (SBPS) is a boot content projection solution that replaces the Cray Content Projection Service (CPS) and Data Virtualization Service (DVS). SBPS projects boot content like rootfs and Cray Programming Environment (CPE) images. SBPS is aimed to offer better reliability, availability, security, ease and speed of deployment and ease of management than CPS/DVS. SBPS was introduced in CSM 1.6. In CSM 1.7.0, support is removed for projecting root filesystems and PE images using CPS and DVS.

The SBPS solution is spread across different components, including:

Key features

  • Provides open source friendly solution for read-only content projection (rootfs and PE) as it uses LIO (Linux IO) which is open source.
  • Horizontally scalable content projection service (iSCSI target side)
  • Delivers active/active IO operation from iSCSI initiator(s) to content projection service
  • Delivers seamless failover and failback for iSCSI initiator(s) on iSCSI target(s) or partial network failure
  • Supports projection over High Speed Network (HSN) and Node Management Network (NMN) without significant reconfiguration
  • Does not require additional hardware infrastructure (iSCSI target)
  • Co-exists with DVS
  • Enables future work related to image access control, multi-tenancy, and related zero trust principles
  • Does not require duplication of images from S3
  • Supports monitoring for performance and reliability engineering
  • Aligns with future plans for similar functionality in next generation systems management solutions
  • Easy to deploy and manage

Note: Using HSN for boot content projection is recommended, and use NMN for any debugging purposes. In the case that the HSN is not configured, use the NMN if it meets the bandwidth requirements.

iSCSI SBPS solution details

iSCSI SBPS Architecture

As shown in figure #1, the basic configuration involves two iSCSI target/server (worker node) nodes and two iSCSI initiators/clients (compute nodes or UANs) connected via HSN and/or NMN where I/O multipath is configured. The rootfs and PE images are hosted in the Image Management Service (IMS) and S3 respectively and both of these images are mapped to boot-images bucket of S3. DNS records are created and used for target node discovery from an initiator node during its boot.

iSCSI target/server

  • Standard Linux kernel
  • s3fs to mount the boot-images bucket onto the worker node
  • LIO (Linux IO) - an open-source implementation of SCSI target which supports fileio backing store
  • targetcli - LIO command-line interface to manage iSCSI devices like creation of LUNs, listing of LUNs, creation of fileio backstore, saving/clearing the configuration, and so on
  • The SBPS core service named SBPS Marshal Agent runs as a Linux systemd service
    • The agent scans IMS and S3 storage for rootfs and PE images
    • It creates fileio backing store for the images to be projected
    • The rootfs images to be projected are tagged by BOS when the boot of initiator nodes is triggered
    • Then the agent creates iSCSI LUNs for each of the fileio backing store where the images to be projected are mapped to these LUNs

iSCSI initiator/client

  • Standard Linux kernel
  • User space iSCSI initiator services
  • DM (Device Mapper) multipath software
  • DNS SRV and A records are used to discover the target nodes during the boot and are part of BOS session template boot parameters
    • This BOS session template is used to trigger the boot of initiator nodes
    • The LUNs created on the target node which has the rootfs/ PE images mapped are thus projected to initiator nodes when the boot is triggered
    • Basically, the rootfs image projected is used as part of booting the initiator node and PE images projected are used post boot
    • These LUNs get mounted onto the initiator node as DM multipath LUNs
    • DM multipath software provides I/O multipath for high availability (failover and failback) and I/O load balancing

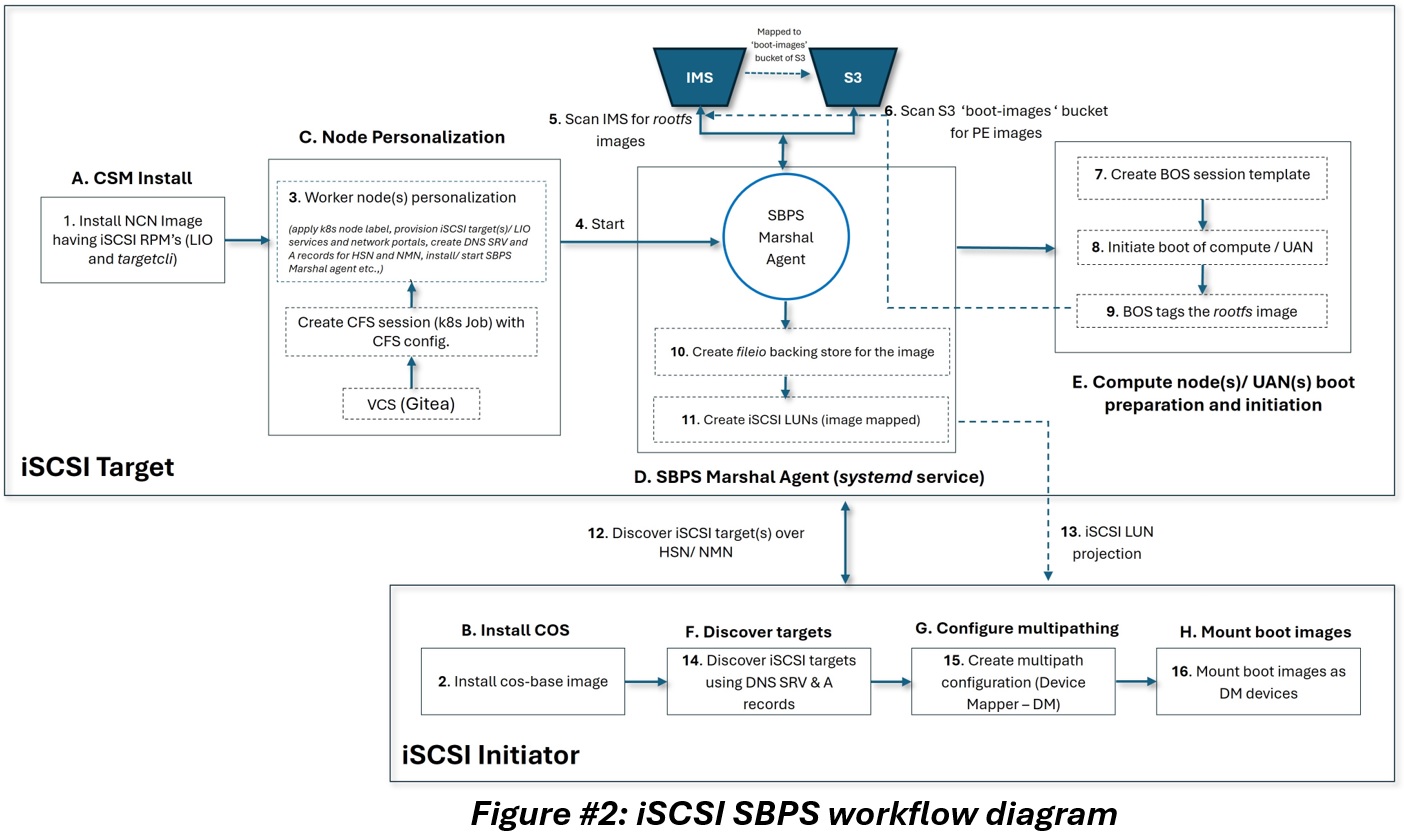

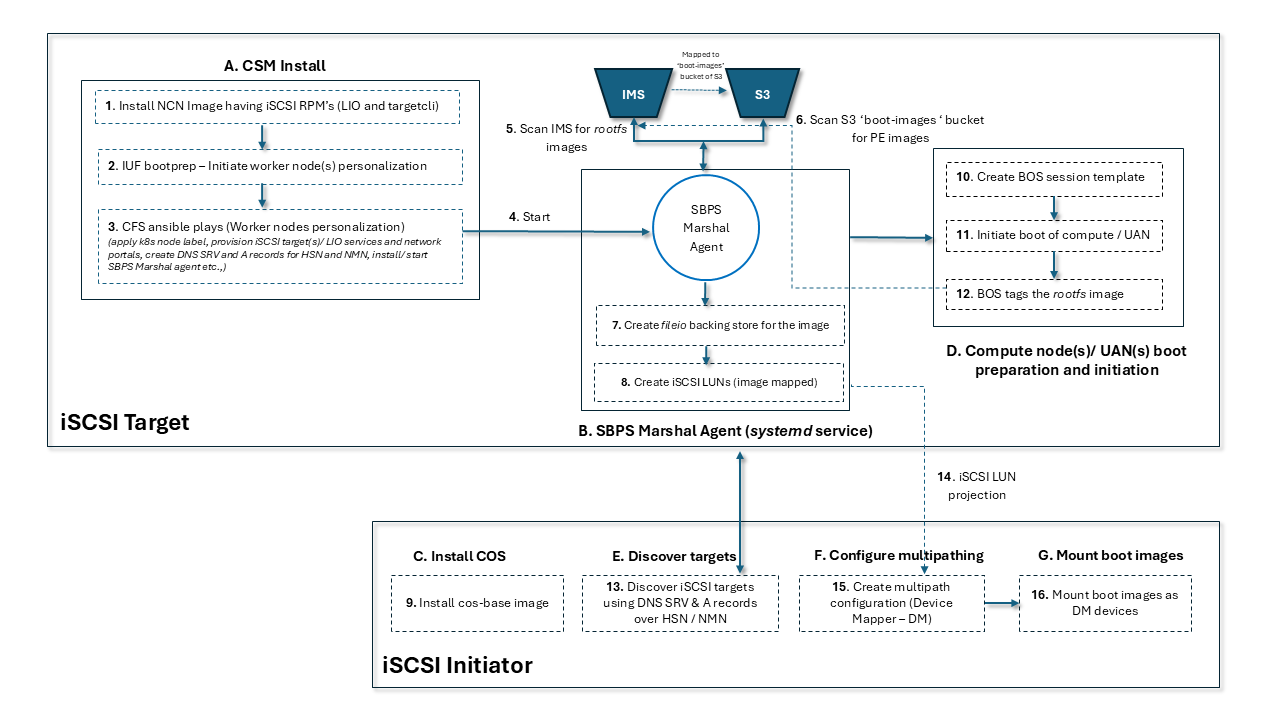

iSCSI SBPS workflow

Steps to achieve SBPS

  1. Worker node personalization
  2. Validate configuration
  3. Create BOS session template
  4. IMS image tagging
  5. Boot compute nodes or UANs
  6. Monitor iSCSI metrics

1. Worker node personalization

Worker nodes are configured for SBPS during Management Node Personalization. This is the prerequisite step of the SBPS solution, where worker nodes are configured as iSCSI targets (servers) with necessary provisioning. The SBPS Marshal Agent is also installed (the required RPMs for the targetcli command and LIO are part of the NCN image).

2. Validate configuration

In order to verify the readiness of the iSCSI targets before triggering the boot of compute nodes or UANs, the iSCSI configuration should be validated. See iSCSI SBPS Verification.

3. Create BOS session template

Once the node personalization is done and the configuration has been validated, then create BOS Session Templates with SBPS boot parameters.

There are two ways to create BOS session template:

Using BOS directly

For details, refer to Create a Session Template to Boot Compute Nodes with SBPS.

Using SAT

  1. (ncn-mw#) Obtain system name and site domain.

    • System name

      craysys metadata get system-name

    • Site domain

      craysys metadata get site-domain

  2. (ncn-mw#) Populate above values into product_vars.yaml and then create BOS session template using sat command.

    For example:

    sat bootprep run --vars-file "session_vars.yaml" --format json --bos-version v2 .bootprep-csm-1.6.0/compute-and-uan-bootprep.yaml

Refer to SAT Bootprep for further details.

Note: This way of creating BOS session template uses vcs/bootprep/compute-and-uan-bootprep.yaml where SBPS will be chosen by default.

4. IMS image tagging

To initiate the boot of compute nodes or UANs, the images (rootfs/ PE ) are tagged to determine which rootfs/ PE image is to be projected. The SBPS Marshal agent uses key/value pair of sbps-project/true to identify the images tagged.

rootfs image tagging

The rootfs images are tagged by BOS automatically when the boot of computes nodes or UANs is initiated. Refer to BOS Workflows for details. It is also possible to tag the rootfs images in IMS manually using the Cray CLI.

PE image tagging

To tag the PE images, first import the PE image to IMS, and then use the Cray CLI to tag it in IMS. Refer Import External Image to IMS for the steps to import an image to IMS.

For details on how to add or remove an IMS image tag using the Cray CLI, refer to Manage image labels.

Below are few examples.

Add IMS image tag

(ncn-mw#) Tag IMS image with ID bbe0e9eb-fa8f-4896-9f54-95dbd26de9bb.

cray ims images update bbe0e9eb-fa8f-4896-9f54-95dbd26de9bb --metadata-operation set --metadata-key sbps-project --metadata-value true
Describe IMS image

(ncn-mw#) Describe IMS image with ID bbe0e9eb-fa8f-4896-9f54-95dbd26de9bb.

cray ims images describe bbe0e9eb-fa8f-4896-9f54-95dbd26de9bb --format json

Example output:

{
  "arch": "x86_64",
  "created": "2024-07-18T22:05:16.565885",
  "id": "bbe0e9eb-fa8f-4896-9f54-95dbd26de9bb",
  "link": {
    "etag": "3325f830ba9ec291005a4087be4f666f",
    "path": "s3://boot-images/bbe0e9eb-fa8f-4896-9f54-95dbd26de9bb/manifest.json",
    "type": "s3"
  },
  "metadata": {
    "sbps-project": "true"  <---------------- Tagged with key/value pair sbps-project/true
  },
  "name": "secure-storage-ceph-6.1.94-x86_64.squashfs"
}
Remove IMS image tag

(ncn-mw#) Remove tag from IMS image with ID bbe0e9eb-fa8f-4896-9f54-95dbd26de9bb.

cray ims images update bbe0e9eb-fa8f-4896-9f54-95dbd26de9bb --metadata-operation remove --metadata-key sbps-project
  • Only remove tags from images that are not currently in use. Removing tags from images that are currently in use will stop the content projection by SBPS Marshal agent, causing undesirable behavior on compute nodes or UANs using the content.
  • As mentioned in rootfs image tagging, BOS automatically tags the rootfs image for projection. BOS does not support automatically removing the tag, so it must be done manually.

5. Boot compute nodes or UANs

Follow the below steps in order to boot compute nodes or UANs.

Single node

(ncn-mw#) Use a command similar to the following to boot a single node.

cray bos sessions create --template-name <bos_session_template_name> --operation reboot --limit <xname_of_the_node>

For example, the following command creates a BOS session to boot the node with xname x3000c0s19b2n0 using the BOS session template named sbps-bos-template.

cray bos sessions create --template-name sbps-bos-template --operation reboot --limit x3000c0s19b2n0

Multiple nodes

(ncn-mw#) Use a command similar to the following to boot every node targeted by a session template.

cray bos sessions create --template-name <bos_session_template_name> --operation reboot

Node console

For more information on accessing the consoles of the booting nodes, see:

When booting compute nodes or UANs without the --limit option, the boot is triggered for all the nodes targeted by the session template. It is necessary to open the console for each node separately.

6. Monitor iSCSI metrics

In order to monitor iSCSI SBPS target statistics, one may monitor metrics series like aggregate LUN read rate, read rate per LUN, throughput statistics on LIO portal network endpoints, and so on.

Refer to iSCSI Metrics for details.

Glossary

  • iSCSI client: A client which initiates I/O requests and receives responses from iSCSI target
  • iSCSI target: A server that responds to iSCSI commands and hosts storage resources
