Tenant Administrator Configuration

Overview

This page describes how to configure a user as a Tenant Administrator, allowing that person to perform administrative functions on one or more tenants, without giving them the same permissions an Infrastructure Administrator would have.

Interacting with services as a tenant

Some services in CSM allow tenants to make requests to their APIs. For example, the Boot Orchestration Service (BOS) and the Configuration Framework Service (CFS). The APIs for these services identify the tenant based on information passed in the request. A tenant must always pass information identifying itself – its tenant ID – when making a request. This is done by including the Cray-Tenant-Name field in the request header, set to the name of the tenant. When this is done, the service will contextually operate on behalf of that tenant.

(linux#) For example:

curl -H "Cray-Tenant-Name: vcluster-red" \
    -H "Authorization: Bearer ${TOKEN}" \
    -H 'Content-Type: application/json' \
    https://api-gw-service-nmn.local/apis/bos/v2/components/

Note: HPE-authored OPA rules prevent unauthorized tenant requests from accessing service APIs, so the value chosen for Cray-Tenant-Name must match the user-provided access token within a request. If the user access token is not part of the tenant name being used, then the command will fail. Because it is possible for one user to be a part of multiple tenant groups, this allows users to select the specific tenant that they are operating under. Even if a user is part of multiple individual tenant groups, only the tenant specified in the request header will be considered for that request.

See also:

Cray CLI integration

Instead of using the API directly, the Cray CLI can also be used to perform various operations specific to tenant-owned resources (compute nodes or application nodes). In order to do this, the CLI must be scoped to the appropriate tenant by executing cray init with the optional --tenant <tenant-name> argument. This causes the CLI to include the tenant identification in the header of the API calls it makes.

Kubernetes OIDC API integration

When CSM is installed, the Keycloak Helm chart will run a setup script which creates a Keycloak client for OIDC integration. This is visible in the Keycloak UI (see below). This client has two mappers which will add the user name and groups to an OIDC token generated by Keycloak:

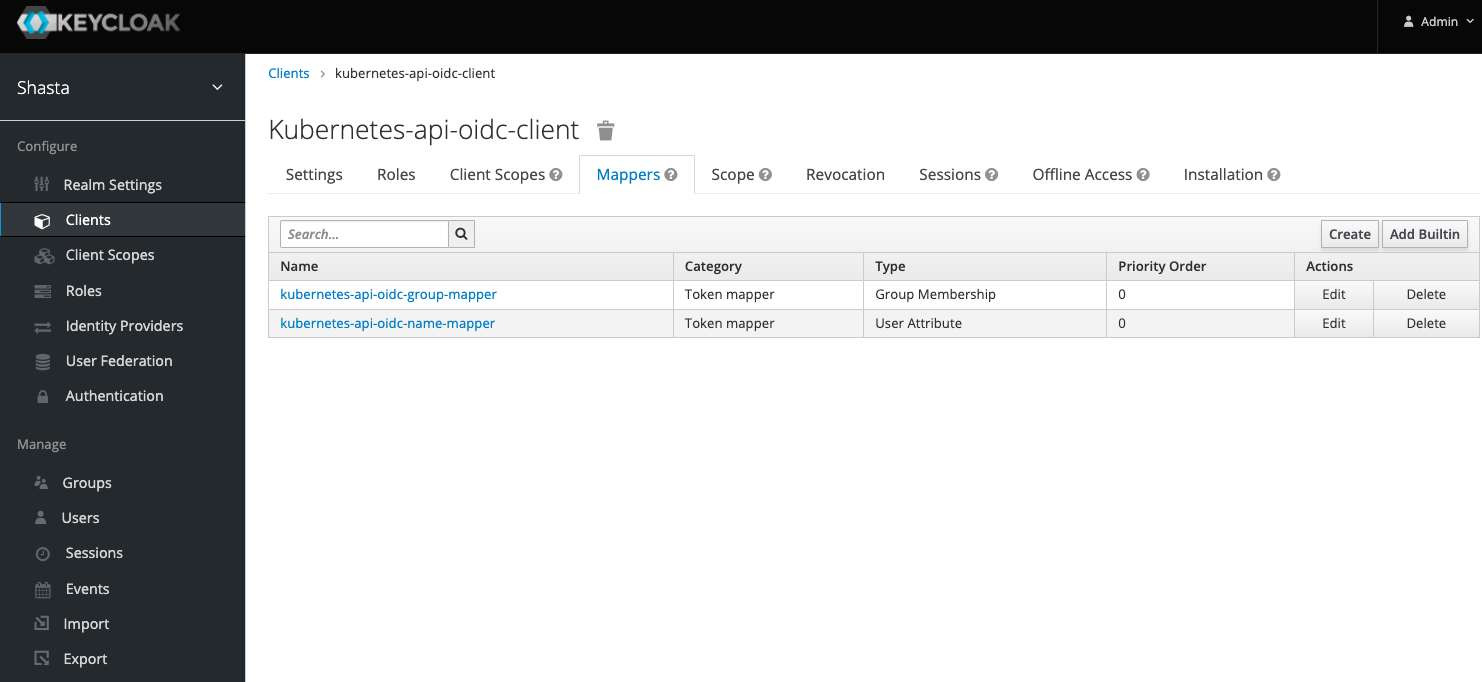

KeycloakClient

The Kubernetes API server is then configured to reference this client for token and user/group claim validation:

    - --oidc-ca-file=/etc/kubernetes/pki/oidc.pem
    - --oidc-client-id=kubernetes-api-oidc-client
    - --oidc-groups-claim=groups
    - --oidc-issuer-url=https://api-gateway.vshasta.io/keycloak/realms/shasta
    - --oidc-username-claim=name

Tenant-specific Keycloak groups

When a tenant is created, TAPMS will create a Keycloak group specifically for that tenant. In the below example, vcluster-blue is the name of the tenant, and TAPMS has created a group with the name vcluster-blue-tenant-admin.

NOTE Logging into the Keycloak UI may not automatically display the realm in which the tenant groups are created. Ensure that the correct realm is selected if the expected groups are not present.

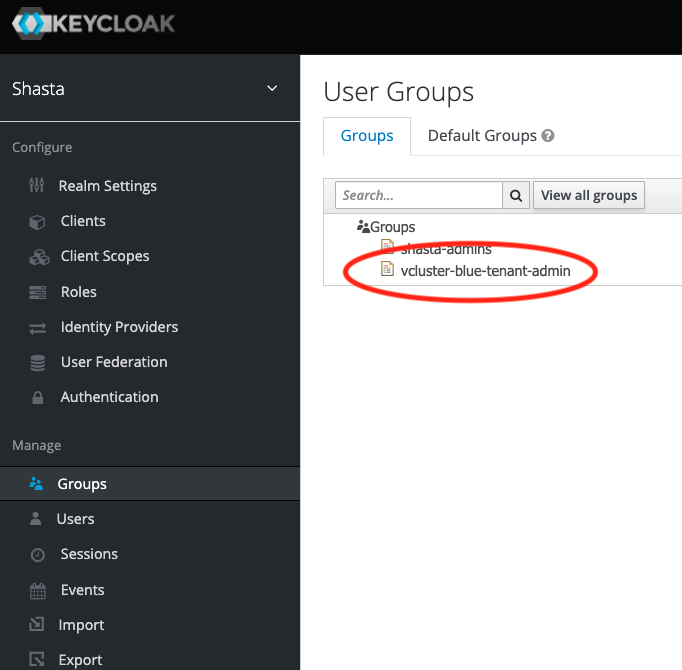

UserGroups

Assigning this group to a user is a manual process. Select the desired user and add them as a member of the new group as follows:

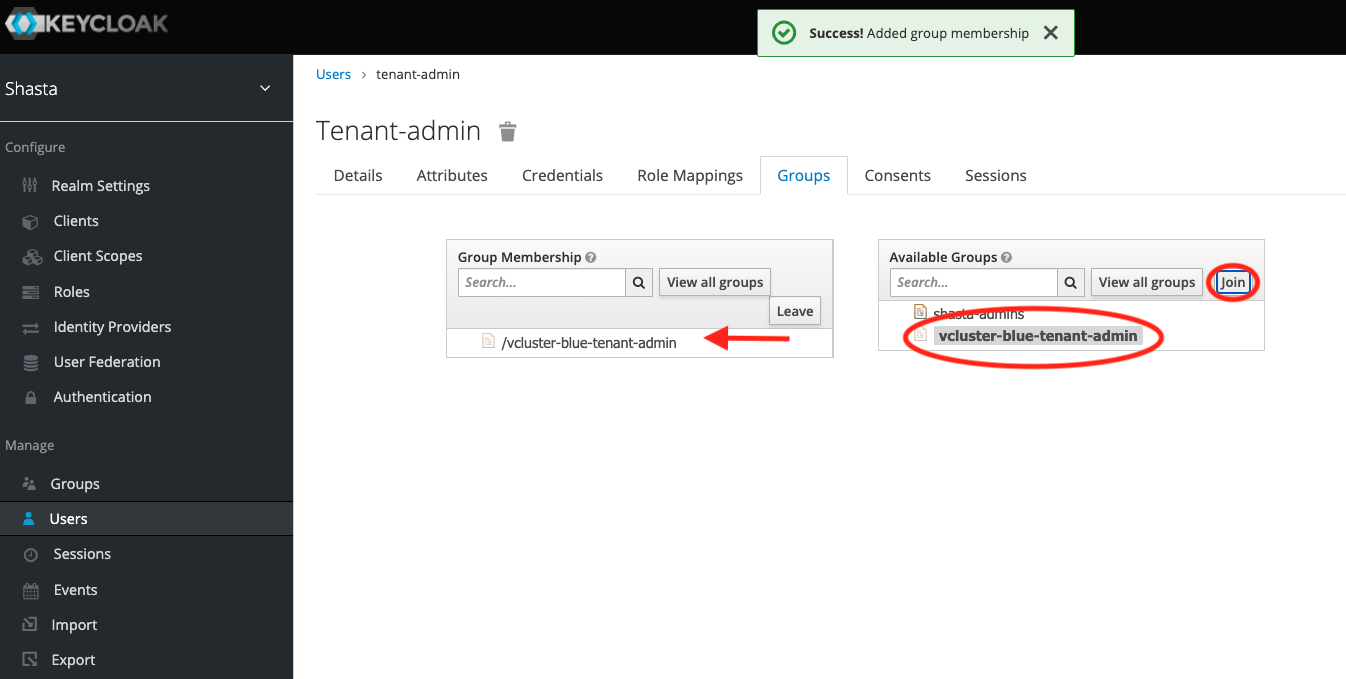

GroupMembership

Users can be added to more than one tenant using the same procedure.

Roles and Rolebindings

Ultimately, the operations the tenant administrator is authorized to perform are controlled by Kubernetes RBAC. By default when a tenant is created and a Keycloak user is added to a tenant’s Keycloak group, that user will have no permissions configured. The Infrastructure Administrator needs to create the desired/appropriate Roles and RoleBindings for the tenant administrator. Below is an example of a YAML file which will give a user some basic permissions for both the tenants and vcluster-blue namespaces:

kind: ClusterRole
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: tenant-admin-role
rules:
  - apiGroups: [""]
    resources: ["secrets", "namespaces","pods"]
    verbs: ["get", "watch", "list"]
  - apiGroups: ["tapms.hpe.com"]
    resources: ["tenants"]
    verbs: ["get", "watch", "list"]
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: tenant-admin-rb-blue
  namespace: vcluster-blue
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: tenant-admin-role
subjects:
- kind: Group
  name: "vcluster-blue-tenant-admin"
  apiGroup: rbac.authorization.k8s.io
---
kind: RoleBinding
apiVersion: rbac.authorization.k8s.io/v1
metadata:
  name: tenant-admin-tenants-blue-rb
  namespace: tenants
roleRef:
  apiGroup: rbac.authorization.k8s.io
  kind: ClusterRole
  name: tenant-admin-role
subjects:
- kind: Group
  name: "vcluster-blue-tenant-admin"
  apiGroup: rbac.authorization.k8s.io

Note the reference to the Keycloak group vcluster-blue-tenant-admin in each of the RoleBinding sections. Administrators can create the appropriate rules in the ClusterRole in order to control the actions the tenant administrator is allowed to perform.

Retrieve an OIDC token

(ncn-mw#) The following command is an example of how to retrieve an OIDC token for interacting directly with the Kubernetes API:

TOKEN=$(curl -k -s -d scope=openid -d response_type=id_token -d grant_type=password \
            -d client_id=kubernetes-api-oidc-client -d password=<REDACTED> -d username=tenant-admin \
            https://api-gateway.vshasta.io/keycloak/realms/shasta/protocol/openid-connect/token | jq -r '.id_token')

Decoding this token will illustrate the groups and name claims added by Keycloak:

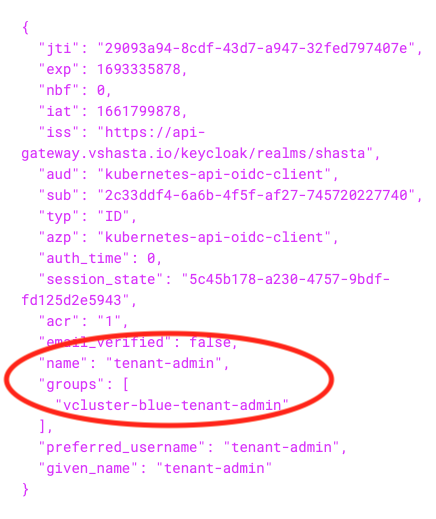

OIDCToken

This token can now be used by the tenant administrator to interact with Kubernetes.

  • (ncn-mw#) The following is an example of listing pods in the vcluster-blue namespace (which was specified in the ClusterRole above as allowed):

    curl -k -H "Authorization: Bearer $TOKEN" https://kubernetes-api.vshasta.io:6443/api/v1/namespaces/vcluster-blue/pods

  • (ncn-mw#) Note that this token could not be used to list pods in a different namespace (services for example):

    curl -k -H "Authorization: Bearer $TOKEN" https://kubernetes-api.vshasta.io:643/api/v1/namespaces/services/pods

    Example output:

    {
  "kind": "Status",
  "apiVersion": "v1",
  "metadata": {

  },
  "status": "Failure",
  "message": "pods is forbidden: User \"https://api-gateway.vshasta.io/keycloak/realms/shasta#tenant-admin\" cannot list resource \"pods\" in API group \"\" in the namespace \"services\"",
  "reason": "Forbidden",
  "details": {
    "kind": "pods"
  },
  "code": 403
}

Using kubelogin

CSM deploys a kubelogin plugin on NCNs as well as a sample Kubernetes configuration file (/etc/kubernetes/tenant-admin.conf/tenant-admin.conf) file, which will allow tenant administrators to log in and perform operations using kubectl.

(ncn-mw#) Here is an example of using kubectl and this configuration file to perform tenant administrator actions:

KUBECONFIG=/etc/kubernetes/tenant-admin.conf kubectl get pod -n vcluster-blue

Example output and typed input:

Username: tenant-admin
Password: <REDACTED>
No resources found in vcluster-blue namespace.
